UCC3889DTR Overview

Product belongs to the UCC3889 series. Type: Voltage Mode PWM Controllers Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Non-Isolated This product has No. Topology: Flyback feedback Supply Voltage: 6.3 V ~ 9.3 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include - function. The product's Non-Isolated is non-isolated. Maximum operating temperature of + 70 C Output voltage: 12 V 18 V 1.2 mA is 92 nA. Output current: 100 mA Switching frequency is 250 kHz The UCC3889EVM. Maximum duty cycle of 55 % This product requires a minimum 6.6 V of 2.95 V. This product has a maximum 9.3 V of 20 V.

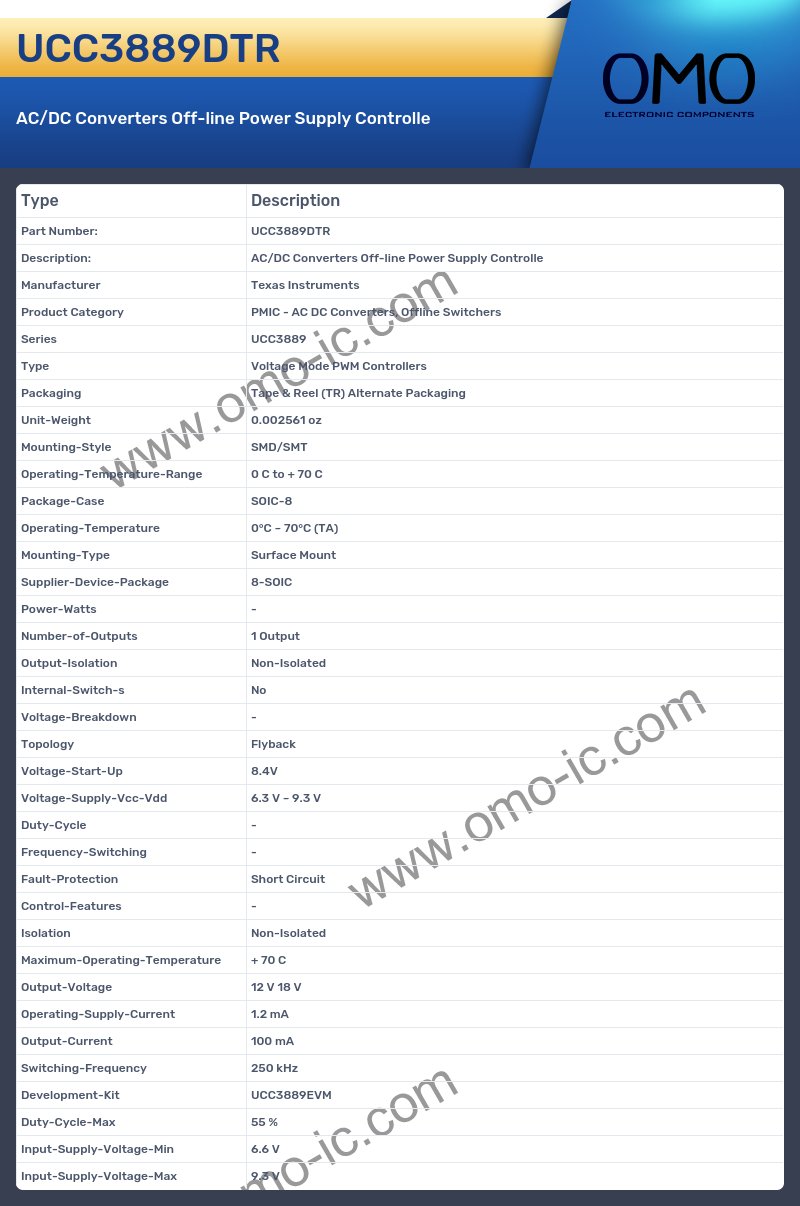

UCC3889DTR Image

UCC3889DTR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series UCC3889
• Type Voltage Mode PWM Controllers
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SOIC
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Non-Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback
• Voltage-Start-Up 8.4V
• Voltage-Supply-Vcc-Vdd 6.3 V ~ 9.3 V
• Duty-Cycle -
• Frequency-Switching -
• Fault-Protection Short Circuit
• Control-Features -
• Isolation Non-Isolated
• Maximum-Operating-Temperature + 70 C
• Output-Voltage 12 V 18 V
• Operating-Supply-Current 1.2 mA
• Output-Current 100 mA
• Switching-Frequency 250 kHz
• Development-Kit UCC3889EVM
• Duty-Cycle-Max 55 %
• Input-Supply-Voltage-Min 6.6 V
• Input-Supply-Voltage-Max 9.3 V
