| Mfr. #: | ULN2004A |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | Darlington Transistors Seven NPN Array |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ULN2004A Datenblatt |
Product belongs to the ULN2004 series. Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style 16-DIP (0.300", 7.62mm) Through Hole mounting type Supplier device package: 16-DIP Configuration Array 7 Transistor type: 7 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 350mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

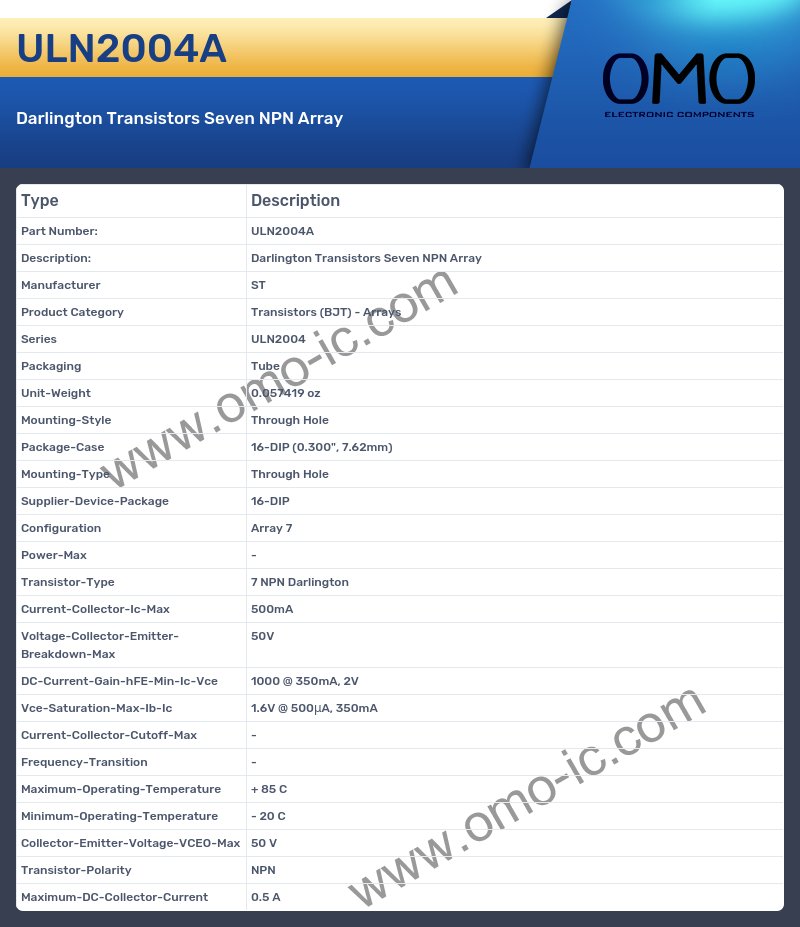

ULN2004A Specifications
A: What is the Series of the product?
Q: The Series of the product is ULN2004.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.057419 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: What is the Package-Case of the product?
Q: The Package-Case of the product is 16-DIP (0.300", 7.62mm).
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 16-DIP
A: What is the Configuration of the product?
Q: The Configuration of the product is Array 7.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 7 NPN Darlington.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 500mA.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 50V
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 1000 @ 350mA, 2V.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 1.6V @ 500μA, 350mA
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 20 C
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 50 V.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed NPN
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 0.5 A
