| Mfr. #: | ULN2004D1013TR |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | Darlington Transistors Seven NPN Array |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ULN2004D1013TR Datenblatt |
Product belongs to the ULN2004 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style 16-SOIC (0.154", 3.90mm Width) Surface Mount mounting type Supplier device package: 16-SO Configuration Array 7 Transistor type: 7 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 350mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

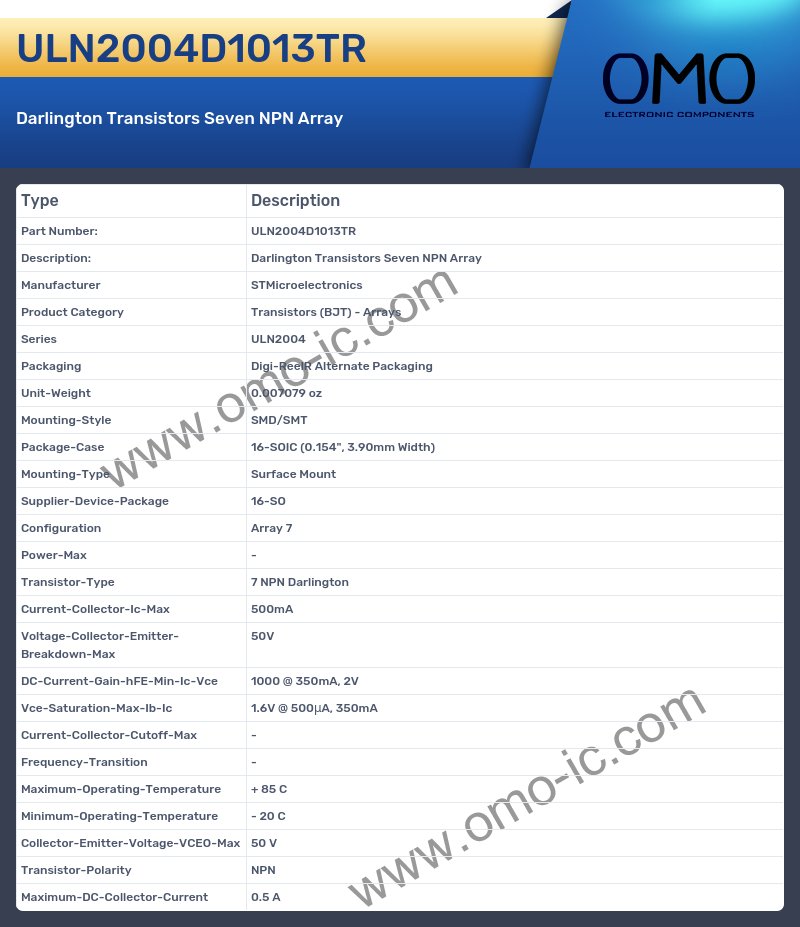

ULN2004D1013TR Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed ULN2004
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.007079 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is 16-SOIC (0.154", 3.90mm Width).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 16-SO.
A: What is the Configuration of the product?
Q: The Configuration of the product is Array 7.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 7 NPN Darlington.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 500mA.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 50V.
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 1000 @ 350mA, 2V.
A: What is the Vce-Saturation-Max-Ib-Ic of the product?
Q: The Vce-Saturation-Max-Ib-Ic of the product is 1.6V @ 500μA, 350mA.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 20 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 50 V
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is NPN.
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is 0.5 A.
