VN10KN3-G

VN10KN3-G Overview

Product belongs to the - series. Alternate Packaging is the packaging method for this product Weight of 0.007760 oz Through Hole Mounting-Style TO-226-3, TO-92-3 (TO-226AA) Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-92-3 Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 60V This product has an 60pF @ 25V value of 300pF @ 25V. This product's Standard. 310mA (Tj) continuous drain-ID current at 25°C; This product has an 5 Ohm @ 500mA, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 1 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product's 30 V. The ID of continuous drain current is 310 mA. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. The 5 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. This product operates in Enhancement channel mode for optimal performance.

VN10KN3-G Image

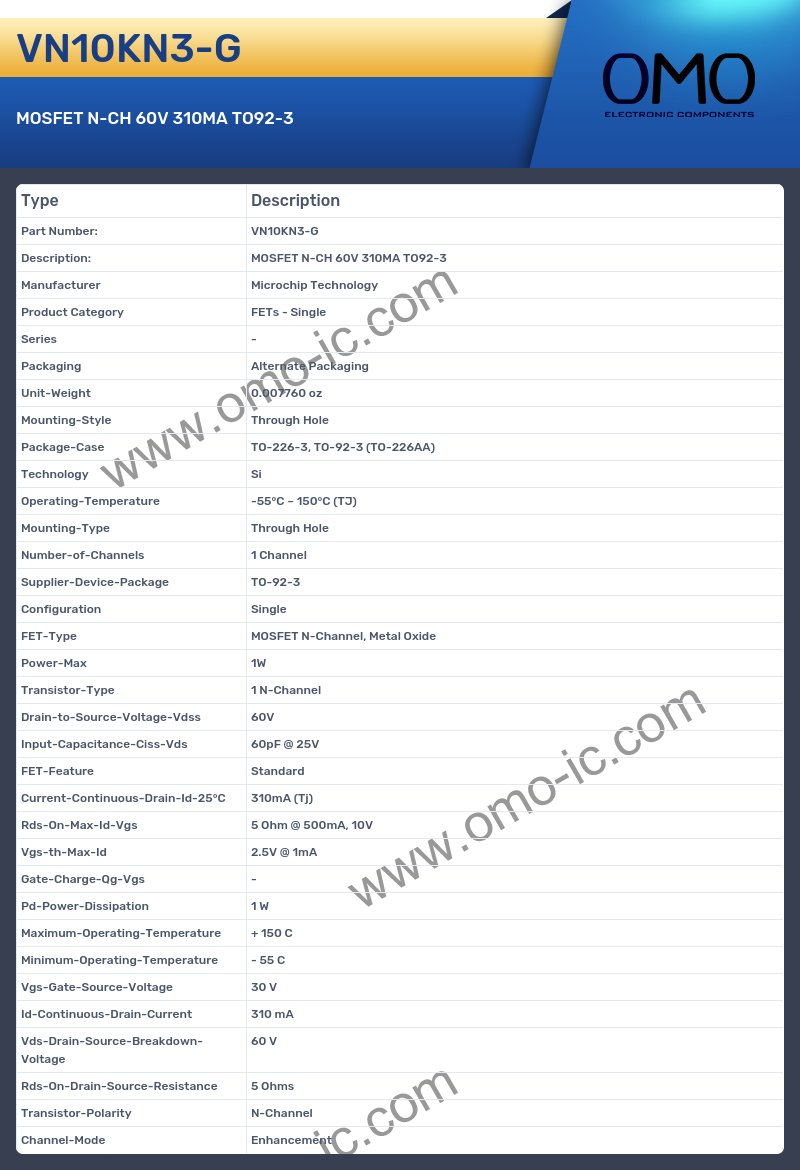

VN10KN3-G Specifications

• Manufacturer Microchip Technology
• Product Category FETs - Single
• Series -
• Packaging Alternate Packaging
• Unit-Weight 0.007760 oz
• Mounting-Style Through Hole
• Package-Case TO-226-3, TO-92-3 (TO-226AA)
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Number-of-Channels 1 Channel
• Supplier-Device-Package TO-92-3
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 1W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 60V
• Input-Capacitance-Ciss-Vds 60pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 310mA (Tj)
• Rds-On-Max-Id-Vgs 5 Ohm @ 500mA, 10V
• Vgs-th-Max-Id 2.5V @ 1mA
• Gate-Charge-Qg-Vgs -
• Pd-Power-Dissipation 1 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage 30 V
• Id-Continuous-Drain-Current 310 mA
• Vds-Drain-Source-Breakdown-Voltage 60 V
• Rds-On-Drain-Source-Resistance 5 Ohms
• Transistor-Polarity N-Channel
• Channel-Mode Enhancement
