VN5E025AJ-E

VN5E025AJ-E Overview

Product belongs to the VIPower series. Type: High Side Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-12 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSSO-12 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Non-Inverting Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 25 mOhm (Max). Voltage-Load range is 4.5 V ~ 28 V. Our product delivers a 43A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 3 mA is 92 nA. Output current: 60 A Maximum supply voltage of 28 V Minimum supply voltage is 4.5 V Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 40000 ns. 15000 ns maximum turn-on delay time

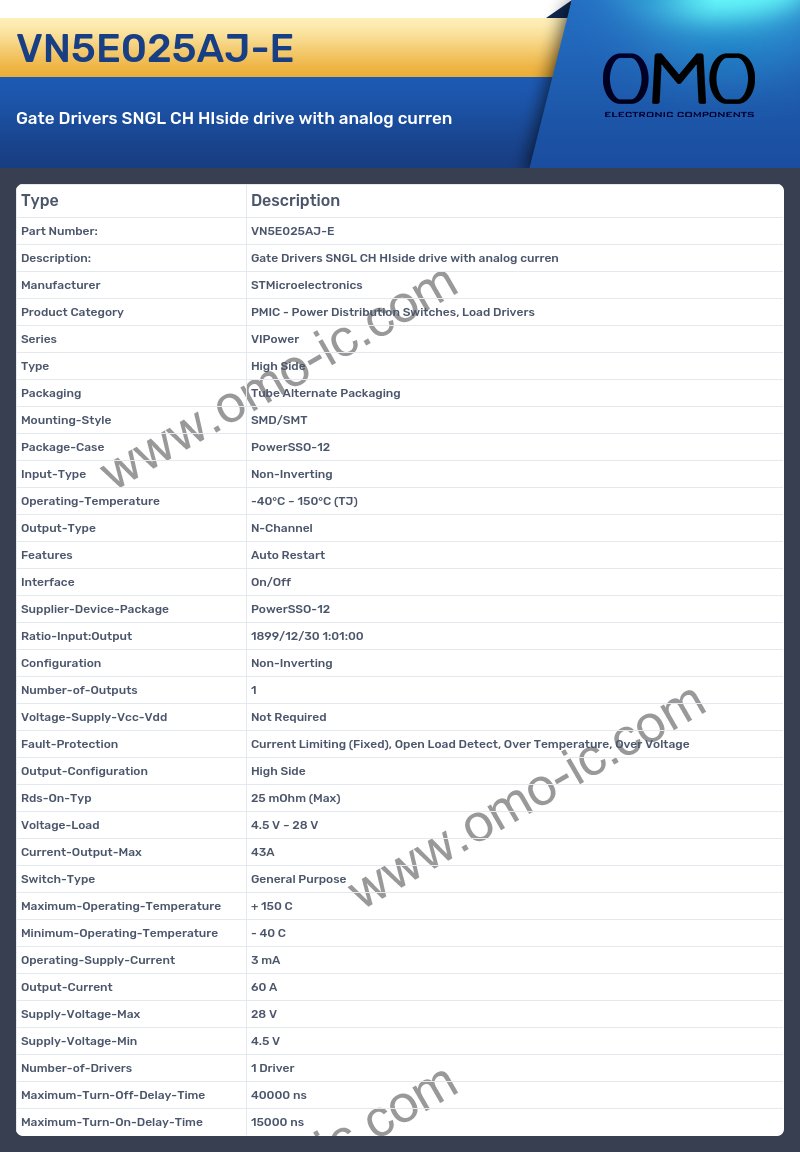

VN5E025AJ-E Image

VN5E025AJ-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VIPower
• Type High Side
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-12
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart
• Interface On/Off
• Supplier-Device-Package PowerSSO-12
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Non-Inverting
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
• Output-Configuration High Side
• Rds-On-Typ 25 mOhm (Max)
• Voltage-Load 4.5 V ~ 28 V
• Current-Output-Max 43A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3 mA
• Output-Current 60 A
• Supply-Voltage-Max 28 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 1 Driver
• Maximum-Turn-Off-Delay-Time 40000 ns
• Maximum-Turn-On-Delay-Time 15000 ns
