VN770KPTR-E

VN770KPTR-E Overview

Product belongs to the OMNIFET II, VIPower series. This product is categorized as Brushed DC Motor Drivers Tape & Reel (TR) Alternate Packaging is the packaging method for this product 28-SOIC (0.295", 7.50mm Width) Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile DC Motors, General Purpose, Relays applications for maximum usability Interface: Logic Voltage Supply Range: 5.5 V ~ 36 V Supplier device package: 28-SO Current-Output-Channel is 9A The Half Bridge (2). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 160 mOhm (Max). The product's - is 4A. Voltage-Load range is 40V (Max).

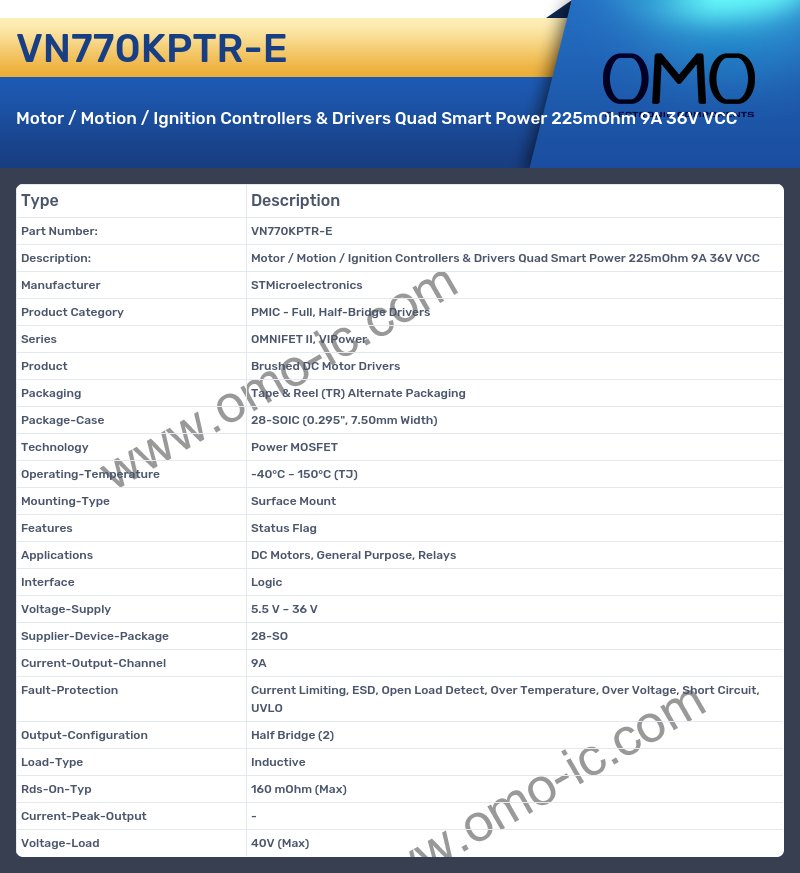

VN770KPTR-E Image

VN770KPTR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Full, Half-Bridge Drivers
• Series OMNIFET II, VIPower
• Product Brushed DC Motor Drivers
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case 28-SOIC (0.295", 7.50mm Width)
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Status Flag
• Applications DC Motors, General Purpose, Relays
• Interface Logic
• Voltage-Supply 5.5 V ~ 36 V
• Supplier-Device-Package 28-SO
• Current-Output-Channel 9A
• Fault-Protection Current Limiting, ESD, Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO
• Output-Configuration Half Bridge (2)
• Load-Type Inductive
• Rds-On-Typ 160 mOhm (Max)
• Current-Peak-Output -
• Voltage-Load 40V (Max)
