| Mfr. #: | VN920SP |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | Power Switch ICs - Power Distribution 30A 36V High Side |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | VN920SP Datenblatt |
Product belongs to the VIPower series. Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSO-10 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 10-PowerSO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 15 mOhm (Max). Voltage-Load range is 5.5 V ~ 36 V. Our product delivers a 30A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 96100 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 5.5 V to 36 V supply voltage for reliable performance. Output current: 30 A Maximum supply voltage of 36 V Minimum supply voltage is 5.5 V Max on-resistance of 15 mOhms
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

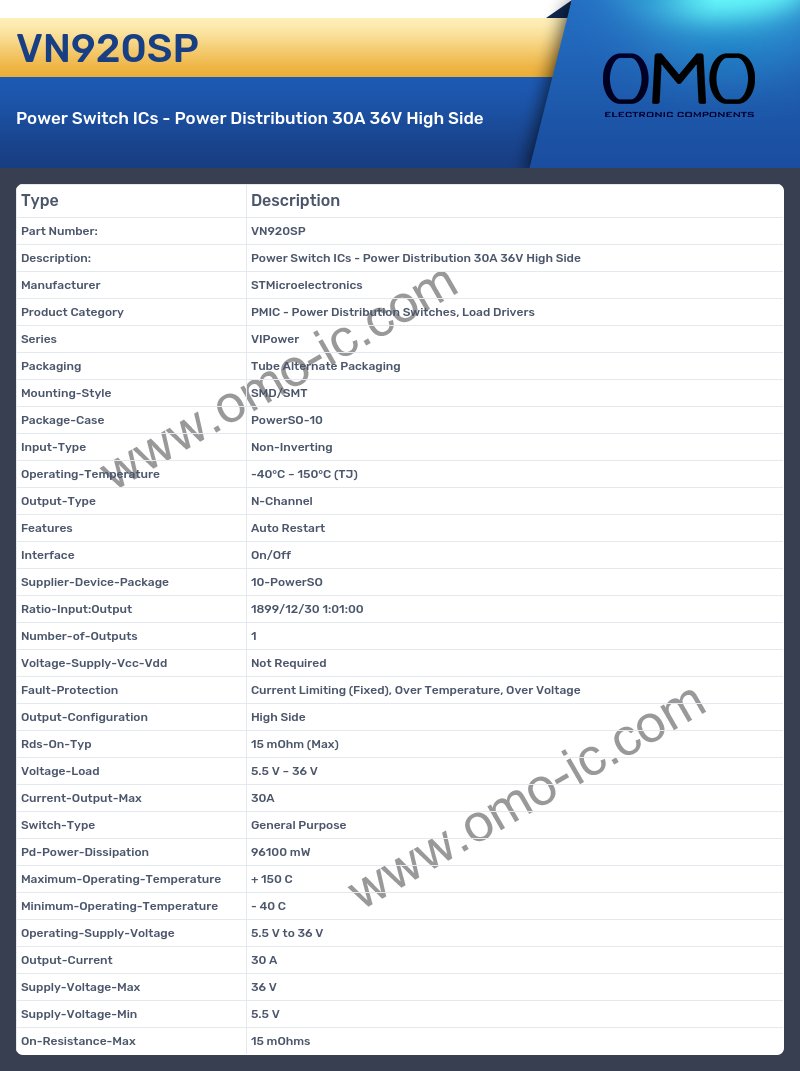

VN920SP Specifications
A: What is the Series of the product?
Q: The Series of the product is VIPower.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube Alternate Packaging.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is PowerSO-10.
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Non-Inverting.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 150°C (TJ)
A: What is the Output-Type of the product?
Q: The Output-Type of the product is N-Channel.
A: What is the Interface of the product?
Q: The Interface of the product is On/Off.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 10-PowerSO.
A: At what frequency does the Ratio-InputOutput?
Q: The product Ratio-InputOutput is 1899/12/30 1:01:00.
A: What is the Number-of-Outputs of the product?
Q: The Number-of-Outputs of the product is 1.
A: What is the Voltage-Supply-Vcc-Vdd of the product?
Q: The Voltage-Supply-Vcc-Vdd of the product is Not Required.
A: Is the cutoff frequency of the product Output-Configuration?
Q: Yes, the product's Output-Configuration is indeed High Side
A: Is the cutoff frequency of the product Rds-On-Typ?
Q: Yes, the product's Rds-On-Typ is indeed 15 mOhm (Max)
A: What is the Voltage-Load of the product?
Q: The Voltage-Load of the product is 5.5 V ~ 36 V.
A: What is the Current-Output-Max of the product?
Q: The Current-Output-Max of the product is 30A.
A: At what frequency does the Switch-Type?
Q: The product Switch-Type is General Purpose.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 96100 mW
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 5.5 V to 36 V
A: At what frequency does the Output-Current?
Q: The product Output-Current is 30 A.
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 36 V
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 5.5 V
A: Is the cutoff frequency of the product On-Resistance-Max?
Q: Yes, the product's On-Resistance-Max is indeed 15 mOhms
