VND10N06-E

VND10N06-E Overview

Product belongs to the OMNIFET, VIPower series. Tube Alternate Packaging is the packaging method for this product Weight of 0.007055 oz SMD/SMT Mounting-Style DPAK-2 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: - Output-Type: N-Channel Interface: On/Off Supplier device package: D-Pak The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 150 mOhm. Voltage-Load range is -. Our product delivers a 6A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 35 W Output current: 6 A Max on-resistance of 0.3 Ohms Maximum off time: 200 ns Maximum on-time: 1100 ns

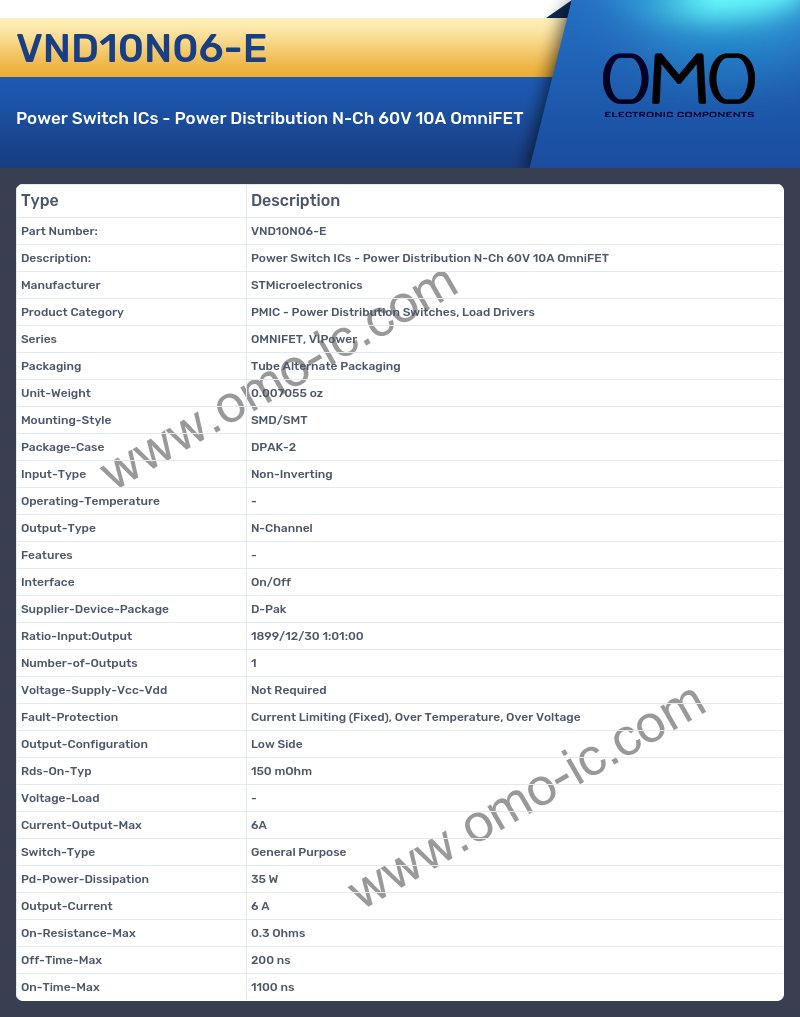

VND10N06-E Image

VND10N06-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET, VIPower
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007055 oz
• Mounting-Style SMD/SMT
• Package-Case DPAK-2
• Input-Type Non-Inverting
• Operating-Temperature -
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package D-Pak
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 150 mOhm
• Voltage-Load -
• Current-Output-Max 6A
• Switch-Type General Purpose
• Pd-Power-Dissipation 35 W
• Output-Current 6 A
• On-Resistance-Max 0.3 Ohms
• Off-Time-Max 200 ns
• On-Time-Max 1100 ns
