VNQ500PEPTR-E

VNQ500PEPTR-E Overview

Product belongs to the VNQ500 series. Type: High Side Tape & Reel (TR) is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-12 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSSO-12 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Non-Inverting Number-of-Outputs: 4 Supply Voltage: Not Required The High Side. The 500 mOhm (Max). Voltage-Load range is 5.5 V ~ 36 V. Our product delivers a 400mA of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 7300 mW 8 mA is 92 nA. Output current: 900 mA Maximum supply voltage of 36 V Minimum supply voltage is 5.5 V Number-of-Drivers: 4 Driver This product has a Maximum-Turn-Off-Delay-Time of 75000 ns. 50000 ns maximum turn-on delay time

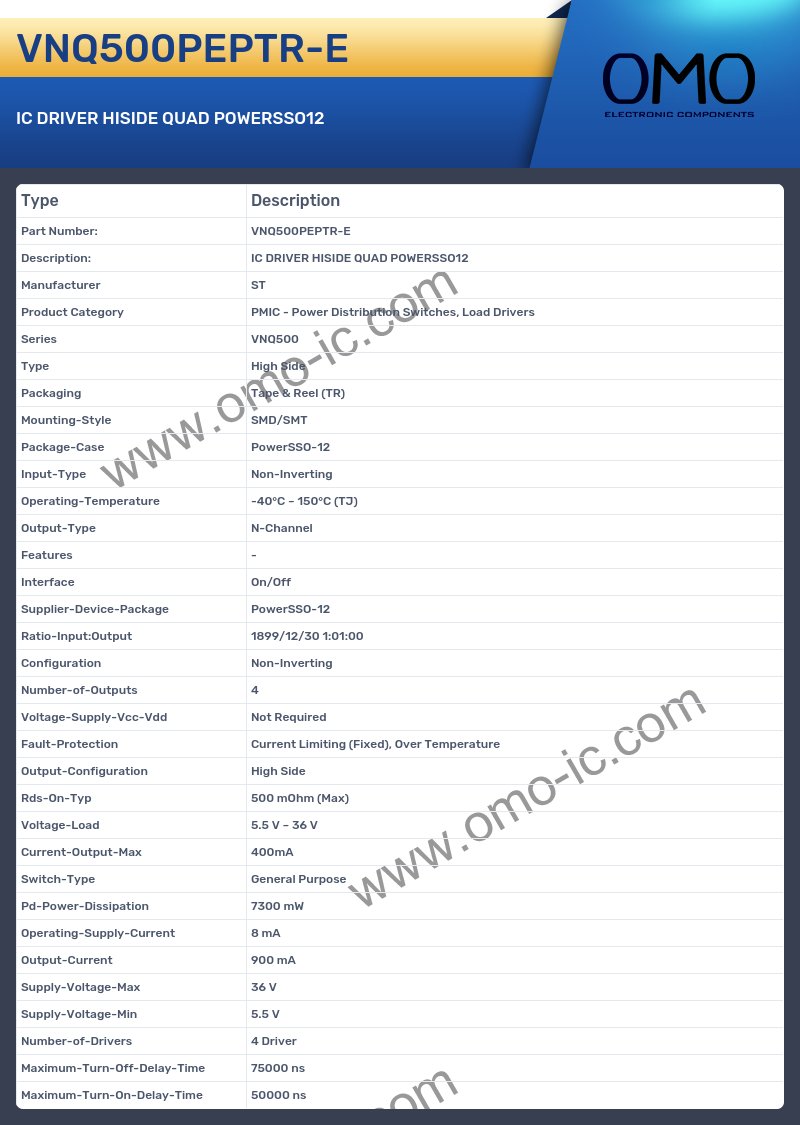

VNQ500PEPTR-E Image

VNQ500PEPTR-E Specifications

• Manufacturer ST
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VNQ500
• Type High Side
• Packaging Tape & Reel (TR)
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-12
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package PowerSSO-12
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Non-Inverting
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 500 mOhm (Max)
• Voltage-Load 5.5 V ~ 36 V
• Current-Output-Max 400mA
• Switch-Type General Purpose
• Pd-Power-Dissipation 7300 mW
• Operating-Supply-Current 8 mA
• Output-Current 900 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 5.5 V
• Number-of-Drivers 4 Driver
• Maximum-Turn-Off-Delay-Time 75000 ns
• Maximum-Turn-On-Delay-Time 50000 ns
