| Mfr. #: | X0202NN 5BA4 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | SCR 800V 1.25AMP SOT-223 |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | X0202NN 5BA4 Datenblatt |
Product belongs to the X02 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Supplier device package: SOT-223 5mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 800mV 200μA of Current-Gate-Trigger-Igt-Max Maximum 1.45V On-State Voltage Its 800mA Current-On-State-It-AV-Max 1.25A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 22.5A, 25A for 50-60Hz Itsm. SCR-Type: Sensitive Gate; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 800 V Rated Repetitive Off-State Voltage VDRM; 5 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 0.8 V on this product. Gate-Trigger-Current-Igt: 0.2 mA; 1.25 A RMS Current On-State 25 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. The Maximum-Gate-Peak-Inverse-Voltage is 8 V. Vf-Forward-Voltage: 1.45 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

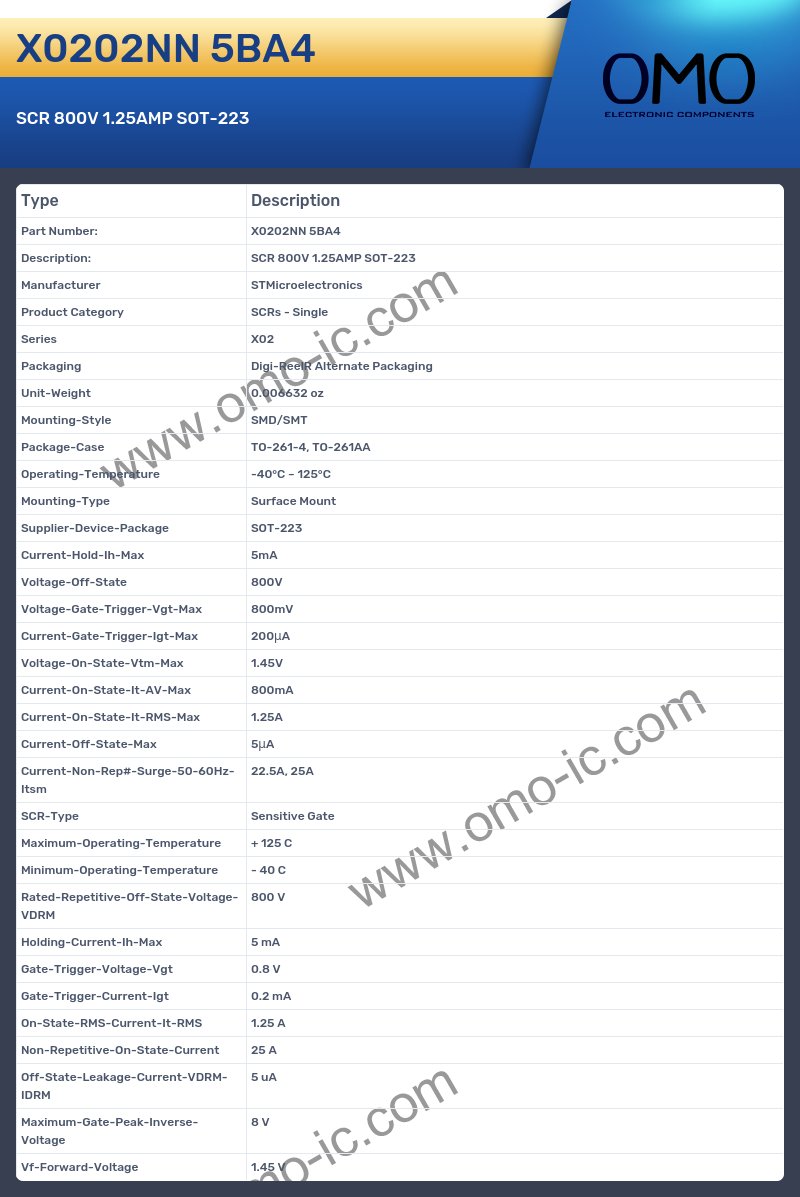

X0202NN 5BA4 Specifications
A: At what frequency does the Series?
Q: The product Series is X02.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.006632 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-261-4, TO-261AA.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 125°C.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is SOT-223.
A: At what frequency does the Current-Hold-Ih-Max?
Q: The product Current-Hold-Ih-Max is 5mA.
A: Is the cutoff frequency of the product Voltage-Off-State?
Q: Yes, the product's Voltage-Off-State is indeed 800V
A: At what frequency does the Voltage-Gate-Trigger-Vgt-Max?
Q: The product Voltage-Gate-Trigger-Vgt-Max is 800mV.
A: Is the cutoff frequency of the product Current-Gate-Trigger-Igt-Max?
Q: Yes, the product's Current-Gate-Trigger-Igt-Max is indeed 200μA
A: At what frequency does the Voltage-On-State-Vtm-Max?
Q: The product Voltage-On-State-Vtm-Max is 1.45V.
A: What is the Current-On-State-It-AV-Max of the product?
Q: The Current-On-State-It-AV-Max of the product is 800mA.
A: What is the Current-On-State-It-RMS-Max of the product?
Q: The Current-On-State-It-RMS-Max of the product is 1.25A.
A: At what frequency does the Current-Off-State-Max?
Q: The product Current-Off-State-Max is 5μA.
A: At what frequency does the Current-Non-Rep#-Surge-50-60Hz-Itsm?
Q: The product Current-Non-Rep#-Surge-50-60Hz-Itsm is 22.5A, 25A.
A: Is the cutoff frequency of the product SCR-Type?
Q: Yes, the product's SCR-Type is indeed Sensitive Gate
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 125 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Rated-Repetitive-Off-State-Voltage-VDRM?
Q: Yes, the product's Rated-Repetitive-Off-State-Voltage-VDRM is indeed 800 V
A: Is the cutoff frequency of the product Holding-Current-Ih-Max?
Q: Yes, the product's Holding-Current-Ih-Max is indeed 5 mA
A: At what frequency does the Gate-Trigger-Voltage-Vgt?
Q: The product Gate-Trigger-Voltage-Vgt is 0.8 V.
A: What is the Gate-Trigger-Current-Igt of the product?
Q: The Gate-Trigger-Current-Igt of the product is 0.2 mA.
A: At what frequency does the On-State-RMS-Current-It-RMS?
Q: The product On-State-RMS-Current-It-RMS is 1.25 A.
A: Is the cutoff frequency of the product Non-Repetitive-On-State-Current?
Q: Yes, the product's Non-Repetitive-On-State-Current is indeed 25 A
A: At what frequency does the Off-State-Leakage-Current-VDRM-IDRM?
Q: The product Off-State-Leakage-Current-VDRM-IDRM is 5 uA.
A: Is the cutoff frequency of the product Maximum-Gate-Peak-Inverse-Voltage?
Q: Yes, the product's Maximum-Gate-Peak-Inverse-Voltage is indeed 8 V
A: At what frequency does the Vf-Forward-Voltage?
Q: The product Vf-Forward-Voltage is 1.45 V.
