The FDS6910 is an N-channel MOSFET (Metal Oxide Semiconductor Field Effect Transistor) device, which is a semiconductor device commonly used in power switching and amplifier applications in electronic circuits. MOSFET is a device that can control the flow of current. It can control the on-off between source and drain through gate voltage. FDS6910 has specific electrical properties and parameters and is suitable for power control and signal amplification in electronic equipment.

Ⅰ.Specifications of FDS6910

•Threshold voltage:1.8 V
•Drain-source voltage (Vds):30V
•Installation style:SMD/SMT

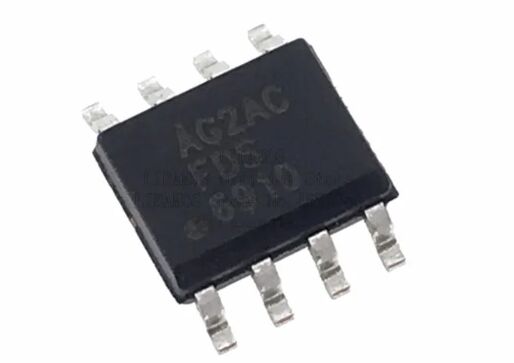

•Package/Case:SOIC-8
•Transistor polarity:N-Channel
•Number of channels:2 Channel
•Vds-drain-source breakdown voltage:30 V
•Id-continuous drain current:7.5 A
•Rds On-drain-source on-resistance:10.6 mOhms
•Pd-Power dissipation:1.6 W
•Vgs-gate-source voltage:-20V, +20V
•Vgs th-gate-source threshold voltage:1V
•Minimum operating temperature:-55℃
•Maximum operating temperature:+150℃
•Qg-gate charge:24 nC
•Fall time:5 ns
•Rise time:5 ns
•Forward transconductance-minimum:36S
•Rated power (Max):900 mW
•Input capacitance (Ciss):1130pF @15V(Vds)
•Length:5mm
•Width:4mm
•Height:1.5mm
•FET function:logic level gate

Ⅱ.Main uses of FDS6910

1.Power management: FDS6910 can be used in power management applications such as switching power supplies, power inverters, and DC-DC converters to achieve efficient power conversion and voltage regulation.

2.Signal amplification: Although FDS6910 is mainly a power MOSFET, it can also be used in small signal amplifier circuits in some special cases.

3.Motor drive: It can be used as a power switch in motor control circuits, such as DC motor driver, stepper motor driver, etc.

4.Dimming and electronic switches: FDS6910 can be used in applications such as dimming circuits, electronic switches, and relay drive circuits to control lighting systems, home appliances, and other equipment.

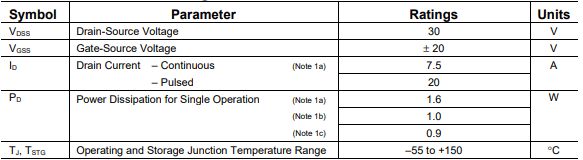

Ⅲ.Absolute Maximum Ratings of FDS6910

Ⅳ.Thermal Characteristics of FDS6910

Ⅴ.Control the on-off between source and drain of the gate voltage of FDS6910

FDS6910 is an N-channel MOSFET (Metal Oxide Semiconductor Field Effect Transistor) device whose gate voltage controls the current by controlling the on-off between source and drain.

In a MOSFET, the gate voltage determines the on or off state of the channel. When the gate voltage is lower than the nominal value, the channel is closed and current cannot flow from source to drain. When the gate voltage is higher than the nominal voltage, the channel opens and current can flow from source to drain.

The gate voltage of the FDS6910 can be controlled by external circuitry. When the gate voltage is higher than the minimum voltage, the channel between the source and drain is turned on and current can flow through the channel. At this time, the resistance between the source and drain is very small and can be regarded as a short circuit. When the gate voltage is lower than the nominal voltage, the channel is closed and the resistance between the source and clear electrodes is very large and can be regarded as an open circuit.

Therefore, by controlling the gate voltage of the FDS6910, the on-off between the source and drain can be controlled, thereby realizing power switch and amplifier applications in electronic circuits.

Ⅵ.Features and advantages of FDS6910

1.Low on-resistance: FDS6910 has low on-resistance, which means less loss in the on-state and can effectively conduct current, thereby improving power efficiency.

2.Fast switching speed: FDS6910 has fast switching speed, suitable for high-frequency switching circuits, and can quickly switch on and off states.

3.Low turn-on voltage: It usually has a low turn-on voltage, can be started at a lower control voltage, and is suitable for low-voltage control in drive circuits.

4.Low static power consumption: In the cut-off state, the drain current of the FDS6910 is very small, so it can reduce static power consumption and help improve efficiency.

5.High withstand voltage: FDS6910 has a high withstand voltage capability and can withstand higher voltages, making it suitable for high voltage applications.

6.High temperature stability: It usually has good temperature characteristics and can maintain stable performance within a certain temperature range.

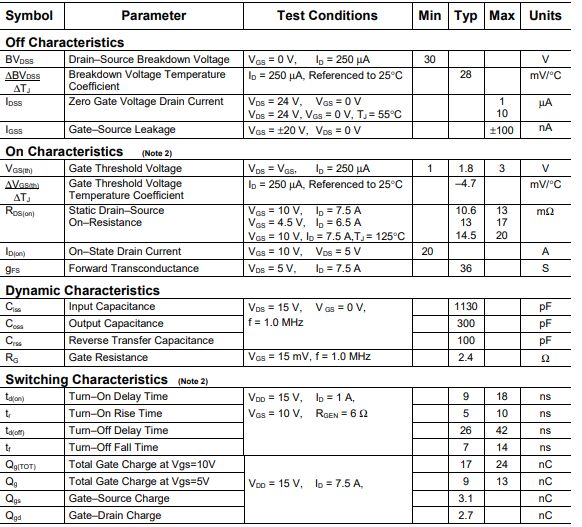

Ⅶ.Electrical Characteristics of FDS6910（TA = 25°C unless otherwise noted）

Ⅷ.Application scenarios of FDS6910

1.Power management: FDS6910 can be used in power management applications, such as switching power supplies, power inverters, DC-DC converters, etc. It helps achieve power conversion and voltage regulation for improving power efficiency and stability.

2.Lighting control: FDS6910 can be used in lighting applications, especially in scenarios where dimming functionality is required. It can be used to control the brightness and effectiveness of lighting systems.

3.Motor control: In motor control systems, FDS6910 can be used in DC motor drivers, stepper motor controllers and motor control circuits. It helps to precisely control the speed and direction of the motor.

4.Electronic switch: As a power switch, FDS6910 can be used in electronic switches and relay drive circuits for automation control and circuit protection.

5.Automotive electronics: In the field of automotive electronics, FDS6910 can be used in battery management systems, motor drives and power control of electric vehicles (EV), hybrid vehicles (HEV) and traditional vehicles.

6.High-frequency applications: Due to its fast switching speed, the FDS6910 is suitable for high-frequency applications such as radio frequency (RF) circuits, wireless communication systems, and high-frequency power transmission.

7.Battery management: It can be used in lithium battery management systems to help monitor and protect lithium batteries to ensure safety and performance.

Frequently Asked Questions

1.What are the static and dynamic characteristics of FDS6910?
Static characteristics: the maximum drain current that the device can withstand in the on state; dynamic characteristics: the change in device performance with temperature, usually expressed by the temperature coefficient.

2.How to drive and use FDS6910 correctly?
Design a suitable drive circuit to ensure correct control of the turn-on and cut-off of the FDS6910. This usually involves selecting appropriate gate drive circuits, resistors, capacitors, and protection circuits to ensure stable switching operation. Solve for the threshold voltage (turn-on voltage) of the FDS6910 and ensure that the applied gate voltage is greater than the threshold voltage for it to turn on. Generally, the gate voltage should be much greater than the threshold voltage to ensure reliable conduction.

3.What are the alternative models of FDS6910?
BSS138, IRF540N, 2N7002
