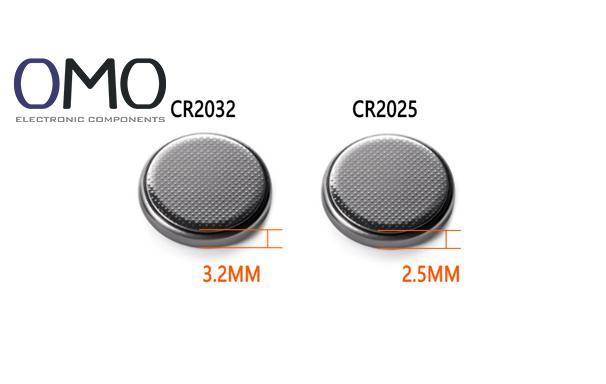

Both CR2025 and CR2032 batteries have a diameter of 20mm, but their thickness differs: 2.5mm for CR2025 and 3.2mm for CR2032. This seemingly small 0.7mm difference directly affects device compatibility. For example, ultra-thin electronic greeting cards (battery compartment ≤3mm) can only use the CR2025, while smart locks (battery compartment ≥3.5mm) require the CR2032 to ensure stable power supply.

Product Advantage Comparison: CR2032 has a 40% higher capacity due to its larger thickness, but CR2025 remains irreplaceable in space-constrained situations.

Both batteries use lithium manganese chemistry, providing a 3V voltage and an operating temperature range from -30°C to 70°C. However, in terms of capacity, CR2032 surpasses CR2025 with 210-240mAh compared to 150-170mAh (see Figure 1). For instance, in a smartwatch, CR2032 can last up to 12 months, while CR2025 only lasts 8-9 months.

Data Visualization:

CR2025 for Thin Devices:

• Hearing aids (average daily consumption < 0.1mA)
• Card-type calculators (thickness ≤3mm)
• Promotional electronic greeting cards (short-term use)

CR2032 for High Power Devices:

• Motherboard BIOS (10-year lifespan to ensure data safety)
• Fitness bands (more than 50 daily interactions)
• Electronic door locks (need to withstand -20°C low temperatures)

Cross-Scenario: Some car key remotes are compatible with both models, but battery compartment depth should be measured.

Mainstream brands show that CR2032 generally has 40-50mAh higher capacity than CR2025, with Panasonic leading in shelf life with 10 years.

Product Advantage Comparison:

Special models like the CR2032HT high-temperature version are designed for extreme environments like car engine compartments.

• Measure Thickness: Use a caliper to measure the old battery or refer to the device manual.
• Calculate Needs: For high-frequency devices (e.g., door locks), choose CR2032; for short-term or thin devices, choose CR2025.
• Check Brand: Prefer industrial-grade products with a shelf life ≥5 years (e.g., Panasonic CR2032).

Pitfall Guide:

• Do not stack CR2025 with a spacer to mimic a CR2032 (risk of poor contact).
• Verify the manufacturing date: Lithium batteries have a self-discharge rate of less than 1% per year, but stock older than 3 years may impact performance.

Can CR2032 replace CR2025?

The CR2025 and CR2032 batteries can generally substitute each other when physically fitting in the device's battery slot. While functionally similar, the CR2032 might offer marginally extended usage time owing to its greater energy storage capacity (measured in milliampere-hours), though the performance difference would likely be minimal in most applications.

What’s the difference between CR2025 and CR2032?

The CR2032 battery is capable of handling a peak continuous current of 20mA, whereas the CR2025 typically supports up to 10mA discharge capacity. Therefore, when choosing between these models, it is crucial to align the selection with your device's specific current requirements to ensure compatibility.

Is a CR2032 the same as CR2025?

CR2025 and CR2032 batteries are interchangeable provided they fit properly in the battery compartment, however the CR2032 may offer a longer lifespan due to its higher capacity (milliampere-hour rating).

Does CR2025 last longer than CR2032?

The 2025 model, being thinner than the 2032, has a lower capacity and consequently a shorter operational lifespan.
