By 21700 battery vs 18650 battery 6677
Main Differences Between 21700 and 18650
Can 21700 and 18650 Be Replaced with Each Other?
A 21700 battery is a cylindrical lithium-ion battery (Li-ion). Its name comes directly from its physical size standard. It is the next step after the 18650 battery. The 21700 battery was made to meet the demand for higher energy density and larger capacity. Tesla and Panasonic first promoted this type. At first, it was used in electric vehicles (EVs). Now, it is also used in high-end power tools, large energy storage devices, and more. Its design idea is to give the best energy output in limited space. It represents the newest direction of cylindrical lithium-ion batteries.
The name 21700 gives its size directly:
This larger size allows more capacity. But it also creates problems for device compatibility. Users must check if their device battery compartment can fit the bigger cell.
The 21700 battery has key advantages:
Because of these, the 21700 battery works well in devices that need high energy and high power.
On the market, this battery is called:
Users should check these names when buying to ensure the correct type.
The 18650 battery is a standard cylindrical lithium-ion battery. Sony first made it in the 1990s. Since then, it became one of the most common rechargeable battery types in the world. Its name comes from its size: 18 mm diameter and 65 mm height. After decades of development, the 18650 has a full supply chain and strong standards. It is widely used in consumer electronics, industrial tools, and power devices. It is often called the "industry standard" for cylindrical lithium-ion batteries.
The 18650 standard size is:
This size balances volume and performance. It is a very popular power source for many electronic devices.
The 18650 battery has stayed popular because:
Because of these, the 18650 is still a reliable choice for normal applications.
The 18650 battery is also called:
Users should check model capacity and discharge rate when buying.

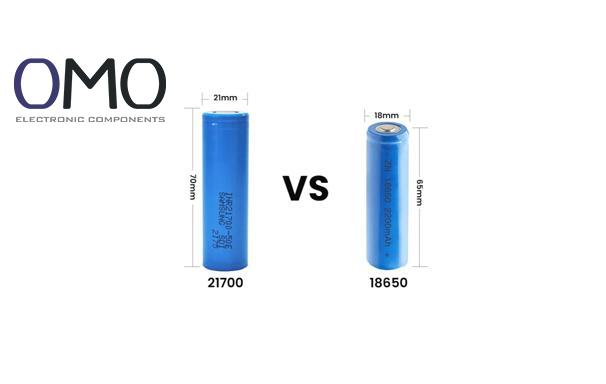

| Characteristic | 21700 Battery | 18650 Battery |
| Diameter | 21 mm | 18 mm |
| Height | 70 mm | 65 mm |
| Volume | ~24.3 cm³ | ~16.5 cm³ |
| Weight | ~60–70 g | ~45–50 g |
The 21700 is about 35% bigger in volume and about 30% heavier. This affects device design and compatibility.
| Characteristic | 21700 Battery | 18650 Battery |
| Typical Capacity | 4000–5000 mAh | 2500–3600 mAh |
| Typical Energy | 15–18 Wh | 9–12 Wh |
| Continuous Discharge | 15A–30A | 10A–15A |
The 21700 clearly has higher capacity. For example, if 18650 = 3000 mAh (100%), then 21700 = 4000–5000 mAh (133%–167%).
So, 21700 shows the future direction, while 18650 gives proven reliability.
Pros
Cons
Pros
Cons
For example, in EVs, 21700 battery packs give about 20% more energy in the same space compared to 18650.
It is still the best choice for cost and reliability in many fields.
Normally, no. Reasons:
In some cases, replacement may be possible (with adapters and enough space). But it needs careful checking.
Follow the device maker’s battery size.
21700 gives 30–40% longer runtime, useful when charging is not frequent.
High-power tools need 21700, as it supports higher discharge (>15A).
If small and light is important, 18650 is better.
18650 is usually 20–30% cheaper, good for bulk use.
18650 is easier to buy now. But 21700 is the future trend for high-performance devices.
No, 21700 and 18650 batteries are not compatible. This is because the 21700 (21mm by 70mm) is larger in both diameter and length than the 18650 (18mm by 65mm).
The typical lifespan of a 21700 battery is 300-500 charge cycles, equating to roughly 2-3 years with daily use. Its actual service life, however, is heavily dependent on usage patterns, charging/discharging practices, and the specific battery model.
To recharge a 21700 lithium-ion battery, employ a smart charger compatible with lithium-ion chemistry. Ensure the charger matches the battery’s nominal voltage (usually 3.6V to 3.7V) and respects its current specifications. To prevent overcharging, configure the charger to terminate charging once the cell voltage reaches 4.2V.
The minimum safe voltage for a standard 21700 lithium-ion battery is 2.5V. Discharging it below this level can cause permanent damage, including electrolyte decomposition and internal short circuits.
